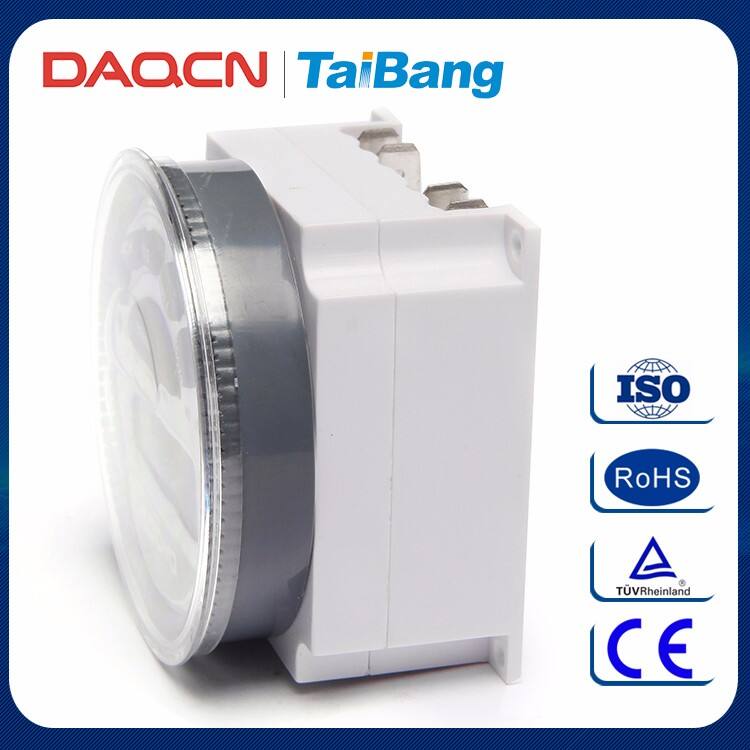

DAQCN High Quality Digital Timer Programmable Weekly Timer TM-619LHN

Quick Detail:

1.digital weekly timer.7-day time switch

2.The products according to the time set by the user,automatically turn on and turn off the variety of electrical equipment

Item No.	TM-619/TM-619L	TM619H/TM-619N
Input Voltage

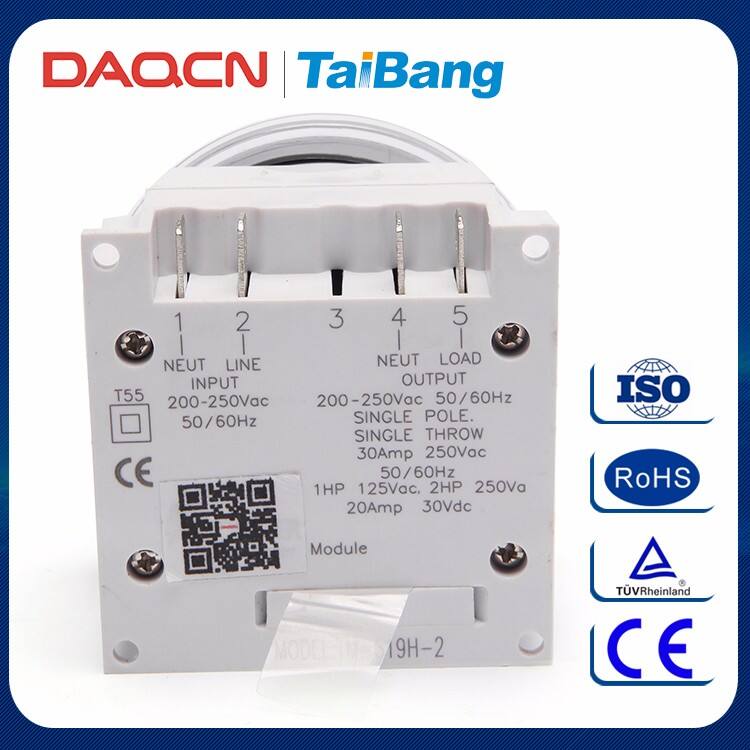

1.100V-130Vac 2.200V-250Vac 3.24Vac/dc 4.12Vac/dc	16(8)A/250V~ 20A/125Vac 8A FLA,250Vac 0.5HP 250/125Vac 16A/30VDC--	30Amp 250Vac 50/60Hz 1HP 125Vac,2HP 250Vac 20Amp 30VDC--

Description:

The TM-619 Series: A Versatile and Robust Timing Solution for Global Industrial Applications

In the complex world of industrial control and automation, the demand for reliable, flexible, and powerful timing components is universal. The TM-619 series of multi-voltage, high-capacity timers is engineered to meet this very challenge, offering a versatile and durable solution for a vast spectrum of applications. This series, encompassing models like the TM-619, TM-619L, TM-619H, and TM-619N, is designed to provide system integrators and engineers with a single product line capable of addressing diverse voltage requirements and substantial electrical loads with unwavering reliability.

Unparalleled Versatility in Power Supply Compatibility

A defining characteristic of the TM-619 series is its exceptional adaptability to various power sources. Unlike standard timers locked into a single voltage, this series is offered in four distinct input voltage configurations, making it a truly global component. The available options include standard North American (100V-130V AC), European/Asian (200V-250V AC), and low-voltage (24V AC/DC and 12V AC/DC) inputs. This flexibility is a significant advantage for multinational corporations, machinery exporters, and system builders working with varied control circuit voltages. It simplifies inventory management, as a single TM-619 model can be specified for different regional markets or within complex machines that utilize both high-power mains and low-voltage control systems. This inherent versatility eliminates the need for external transformers or voltage converters, reducing system complexity, cost, and potential points of failure.

Robust Switching Capacity for Demanding Loads

The TM-619 series is not merely a control signal device; it is a power-switching workhorse. The standard models (TM-619/TM-619L) boast an impressive rating of 16(8)A at 250V AC, suitable for a wide range of general-purpose applications. However, the series truly distinguishes itself with its high-capacity variants. The TM-619H and TM-619N models are engineered to handle substantial currents, rated at 30Amp at 250Vac 50/60Hz. This high-current capability allows the timer to directly control heavy-duty industrial equipment, large lighting arrays, powerful heating elements, and substantial motorized actuators without the intermediary of a contactor in many cases, leading to a more compact and cost-effective control panel design.

Superior Motor Load Management

A critical and often challenging application for timers is the direct control of electric motors, which present high inrush currents during startup. The TM-619 series is specifically rated to manage these demanding loads. It can handle 8A of Full Load Amperage (FLA) at 250Vac. More intuitively for motor applications, it is rated for 0.5 HP at 250/125Vac, with the high-capacity models capable of controlling motors up to 1 HP at 125Vac and 2 HP at 250Vac. This makes the TM-619H/N an ideal choice for applications such as automating industrial fans, pumps, compressors, and conveyor belt systems, providing a direct and reliable start/stop control mechanism.

Exceptional Performance Across Current Types

The engineering excellence of the TM-619 series extends to both alternating and direct current systems. While its high-current AC performance is a standout feature, it also maintains robust DC switching capabilities, with ratings of 16A at 30VDC for standard models and 20A at 30VDC for the high-performance variants. This DC compatibility opens up a wide array of applications in telecommunications, solar power systems, vehicle and vessel automation, and other scenarios where control is based on a DC power source. The ability to seamlessly switch between AC and DC loads with a single, robust device underscores its design philosophy of maximum utility and application breadth.

Designed for Reliability and Ease of Integration

Built for the rigors of industrial environments, the TM-619 series is constructed to ensure long-term stability and accuracy. Its design prioritizes durability, with components selected to withstand the electrical stresses of high inrush currents and inductive load switching. The typical form factor for such industrial timers is a DIN rail mountable enclosure, which allows for quick, secure, and organized installation in standard electrical cabinets alongside contactors, circuit breakers, and PLCs. This standardized mounting solution saves valuable time during both initial assembly and any future maintenance or panel modifications.

Conclusion: The Comprehensive Timing Solution

The TM-619 series represents a pinnacle of versatility and power in the realm of industrial timers. By consolidating multiple voltage options, high-current AC switching, direct motor control capability, and robust DC performance into a single product line, it offers a comprehensive solution that eliminates engineering compromises. Whether the application involves controlling a simple lighting schedule in a commercial building, cycling a heavy-duty industrial pump in a factory, or managing equipment in a DC-powered remote site, the TM-619 series has a model designed for the task. For engineers and system builders seeking a reliable, powerful, and adaptable timer to form the cornerstone of their automated processes, the TM-619 series delivers proven performance and unparalleled flexibility.

Applications:

The products according to the time set by the user,automatically turn on and turn off the variety of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,

agriculture,aquaculture,warehouse exhaust dehumidifier automatically preheat optioml control products,such as radio and television equipment.Lithium battery inside,high-precision,industrial-grade chips,strong anti-jamming.
