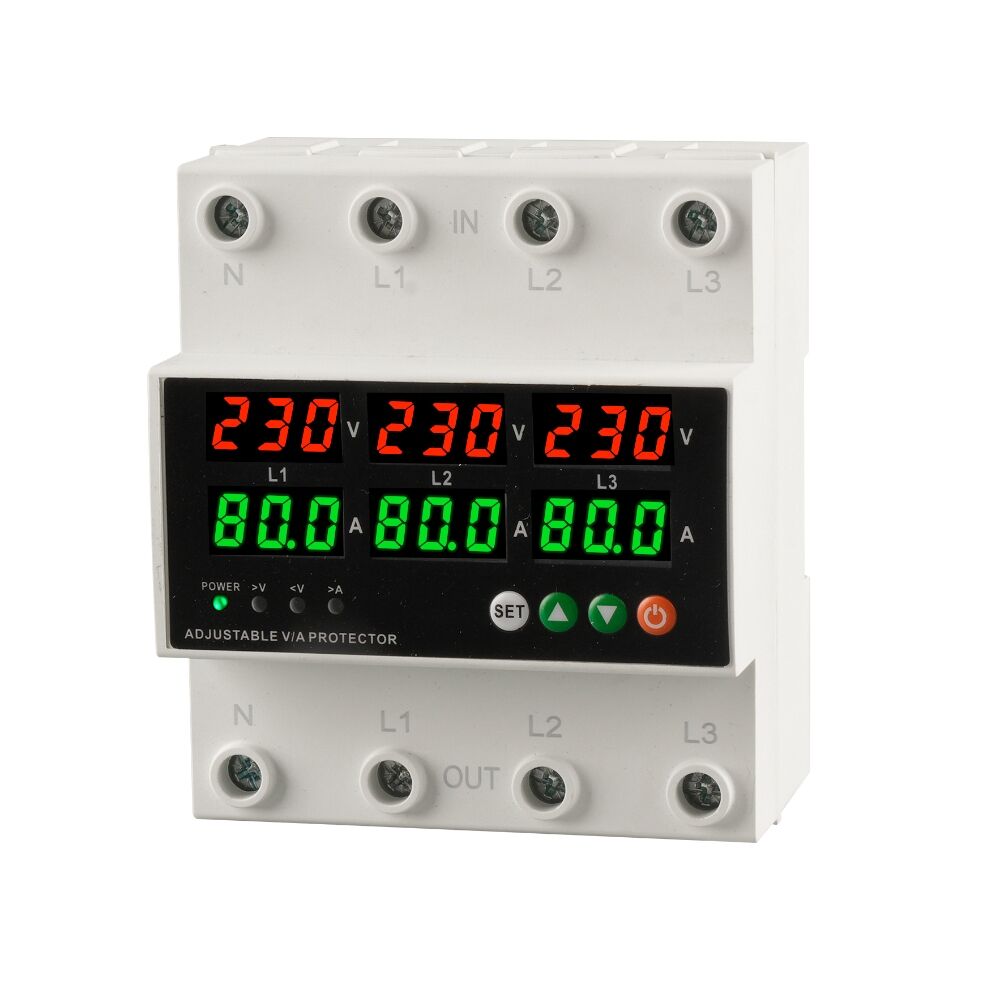

Electric Power Protector Digital Adjustable Output AC/DC Overunder Voltage Protector Three Phase Stabilizers

Quick Detail:

Description:

The Advanced Three-Phase Auto-Reclosing Voltage Protection Relay: Ensuring Uninterrupted Power for Critical Industrial Operations

In the complex and high-stakes environment of modern industrial facilities, commercial buildings, and infrastructure projects, three-phase power is the fundamental lifeblood that drives motors, HVAC systems, data centers, and manufacturing processes. The stability of this three-phase supply is paramount; voltage imbalances, sags, or swells can cause catastrophic equipment failure, production downtime, data loss, and significant financial damage. While traditional three-phase protection devices exist, they often lack the intelligence for autonomous recovery, leaving critical systems offline until a technician manually intervenes. The Advanced Three-Phase Auto-Reclosing Voltage Protection Relay is engineered to transcend this limitation. It is a sophisticated, microprocessor-based guardian designed specifically for three-phase networks, offering not only precise, programmable protection against overvoltage and undervoltage conditions but also the transformative capability of intelligent, automatic system recovery. This combination ensures maximum operational continuity, minimizes human intervention, and provides resilient, hands-off protection for the most vital three-phase loads.

Intelligent Auto-Reclosing: The Core of Operational Resilience

The defining innovation of this protector is its advanced auto-reclosing logic, a critical feature for unattended or process-critical applications. After a voltage anomaly triggers a disconnect, the device does not remain in a latched "off" state. Instead, it continuously monitors all three phases. Once the supply voltage returns and remains stable within the safe, user-defined window for a configurable Reset Startup Delay (1-500 seconds), the protector automatically re-energizes the circuit. This delay is vital—it prevents damaging inrush currents from repeatedly hitting motors or transformers during unstable grid conditions and allows connected systems to stabilize. This self-recovery capability transforms the device from a simple circuit interrupter into an intelligent system manager, ensuring the fastest possible return to normal operations without manual resetting, thereby safeguarding productivity and reducing maintenance costs.

Precision-Programmable Protection for Three-Phase Systems

This relay offers unparalleled control, allowing it to be meticulously tailored to the specific requirements of any three-phase application and local grid profile.

· Dual Voltage System Compatibility: It is expertly designed for both common global three-phase voltages, with dedicated parameter sets for 220V line-to-neutral (380V line-to-line) and 380V line-to-neutral (660V line-to-line) systems. This includes corresponding Overvoltage setting ranges (230-300V / 390-500V) and Undervoltage setting ranges (210-140V / 370-260V).

· Broad Operational and Current Range: With an extensive working voltage range of AC 80-400V (for 220V systems) and AC 140-700V (for 380V systems), it can operate in severely deficient grids and withstand substantial overvoltage events. It supports high-power applications with a current setting range of 1-100A and a rated current of up to 100A.

· Adjustable Response Timing: The Trip Delay is finely adjustable from 0.1 to 30 seconds. This allows engineers to immunize the system against harmless transients while ensuring a decisive response to sustained faults, providing perfect coordination with other protective devices and load characteristics.

Robust, Industrial-Grade Construction for Demanding Environments

Built to the highest standards of reliability, this protector is engineered for the harsh realities of industrial settings.

· High Accuracy & Durable Switching: Featuring voltage measurement accuracy within 2%, it guarantees protection decisions are based on trustworthy data. Its 3NO (Three Normally Open) output contacts provide a robust and reliable switching mechanism to control a three-pole contactor, designed for a long electrical service life.

· Exceptional Environmental Endurance: It operates flawlessly across a temperature range of -50°C to +55°C, ensuring performance in freezing substations or overheated motor control centers (MCCs). Its components are rated for a Pollution Degree 3 environment, meaning it is protected against conductive dust, humidity, and other industrial contaminants.

· Comprehensive Safety Ratings: With a high Rated Insulation Voltage (400V/700V), suitability for installations up to 2000 meters in altitude, and an IP20 enclosure that prevents finger contact with live parts, it meets rigorous international safety standards for panel-mounted equipment.

Critical Applications for Three-Phase Auto-Reclosing Protection

The combination of three-phase monitoring and auto-reclosing intelligence makes this device indispensable across a wide spectrum of critical applications:

· Industrial Manufacturing & Process Control: Protects CNC machines, assembly line conveyors, industrial robots, and plastic injection molders. Automatic recovery after a brief grid fault minimizes costly production stoppages and prevents spoilage of materials in process.

· Commercial & Institutional Infrastructure: Ideal for safeguarding centralized HVAC chiller plants, elevator banks, data center power distribution units (PDUs), and hospital medical gas systems. Uninterrupted operation is essential for comfort, safety, and business continuity.

· Water & Wastewater Management: Protects critical three-phase pumps for water supply, filtration, and sewage treatment. Auto-reclosing ensures these essential public health systems reactivate automatically after a grid disturbance.

· Renewable Energy & Remote Sites: Crucial for the three-phase output protection of commercial solar or wind farms and for unattended telecommunications base stations. It maintains energy production and network connectivity without requiring site visits for manual resets.

Conclusion: The Autonomous Cornerstone of Modern Three-Phase Power Management

The Advanced Three-Phase Auto-Reclosing Voltage Protection Relay represents a significant leap forward in power quality management for polyphase systems. It successfully addresses the core challenge of balancing protection with operational continuity. By integrating precise, three-phase voltage monitoring with intelligent, self-recovery logic, it eliminates the vulnerability period following a grid disturbance, directly translating to enhanced productivity, reduced operational expenses, and superior asset protection. For facility managers and plant engineers, it delivers peace of mind and operational resilience. For system designers and panel builders, it offers a sophisticated, value-added component that elevates the intelligence and reliability of the entire electrical system. In an era where uptime is directly linked to profitability and safety, this device stands as an autonomous sentinel—continuously guarding three-phase infrastructure and ensuring that mission-critical operations are not only protected from harm but are also perpetually poised to resume their vital functions, securing both performance and investment.

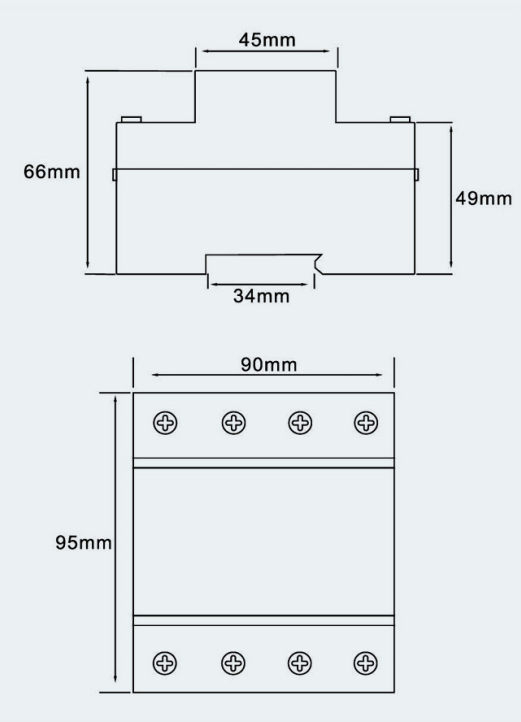

Specifications:

Competitive Advantage:

Advantages of Wenzhou DAQUAN Electric Co., Ltd

1. Innovation Leadership

With 258 patents and 27 years of industry experience, we lead in R&D of industrial control devices like relays and timers, ensuring cutting-edge product performance.

2. Global Certifications

Our products hold CE, ROHS, IEC, TUV certifications plus ISO9001, meeting strict international standards for seamless global market access.

3. Scale Supply Stability

Backed by a 7,800㎡ factory, 499-strong team, and 70M RMB annual output, we guarantee efficient production and timely delivery for bulk orders.
