AH2-N Timer 5A – 16 Ranges 1s-24h, Panel Mount
| Place of Origin | China |
| Brand Name | DAQCN |
| Model Number | AH2-N |
| Certification | CE, ROHS, IEC, TUV,ISO9001 |
| Packaging Details | Standard corrugated carton or customized as you requested |
| Delivery Time | 1-2weeks depend on your quantity |
- Overview
- Recommended Products
Quick Detail
| Specification | |
| Voltage | DC12V-48V AC12V-380V50HZ |
| Power expend | DC1.0W AC1.0VA |
| Control output | 5A220VAC |
| Insulation Resistance | DC500V 100MΩ |
| Dielectric Strength | BCC1500VAC BOC1000VAC |
| Operating Temperature | -10℃~50℃ |
| Huminity | 35%~85% |
| Life | Mech:10⁷Elec:10³ |
| Weight | ≈210g |

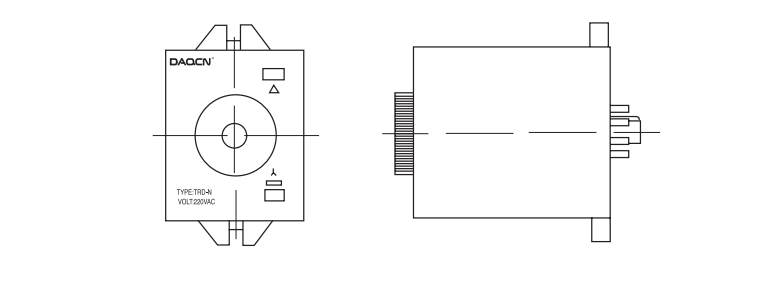

| Installing Holing Size | 50×62 mm |
| Time range | |
| Unit | Time range |
| S | 15,3S,6S,12S,30S,60S |
| M | 3M,6M,12M,30M,60M |
| H | 3H,6H,12H,24H |
Applications:
Competitive Advantage:
Advantages of Wenzhou DAQUAN Electric Co., Ltd
1. Innovation Leadership
With 258 patents and 27 years of industry experience, we lead in R&D of industrial control devices like relays and timers, ensuring cutting-edge product performance.
2. Global Certifications
Our products hold CE, ROHS, IEC, TUV certifications plus ISO9001, meeting strict international standards for seamless global market access.
3. Scale Supply Stability
Backed by a 7,800㎡ factory, 499-strong team, and 70M RMB annual output, we guarantee efficient production and timely delivery for bulk orders.
